Absolute Maximum Ratings
| Operating Temperature
|
| Maximum Voltage/Current
|
|
| Commercial
| 0ºC to +70ºC
| Voltage on J2
| +5.5 VDC Regulated
|
| Storage Temperature
| -50ºC to +125ºC
| Voltage out J1 pin 19
| +5V VDC Regulated
|
|
|
| Current available at J1 pin 19
| 400 mA
|
|
|
|
|
|
|
Mechanical Dimensions

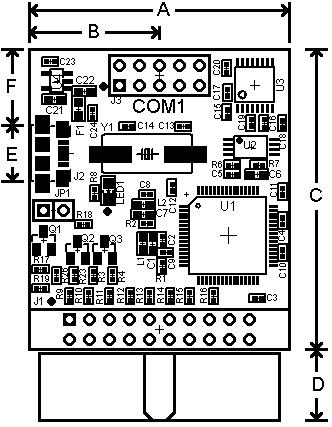

picoJTAG Mechanical Dimensions
| DIM
| Inches
| Millimeters
| DIM
| Inches
| Millimeters
| DIM
| Inches
| Millimeters
|
| A
| 1.3
| 33.02
| B
| 0.65
| 16.51
| C
| 1.5
| 38.1
|
| D
| 0.355
| 9.02
| E
| 0.315
| 8.0
| F
| 0.679
| 17.25
|
