Absolute Minimum and Maximum Ratings

Characteristic	Minimum	Maximum	Unit
Voltage on J1 without LCD	4.8	15.0	VDC
Voltage on J1 with LCD	4.4	5.8	VDC
Voltage on VBAT (JP7 or J2)	0.0	3.3	VDC
Voltage on ADC	0.0	3.0	VDC
Voltage on Digital Input	0.0	5.0	VDC
Operating Temperature	0	70	ºC
Storage Temperature	-50	125	ºC

The Eagle SBC is currently available for commercial temperature ranges. Contact the Micromint sales department if you require support for industrial temperature ranges.

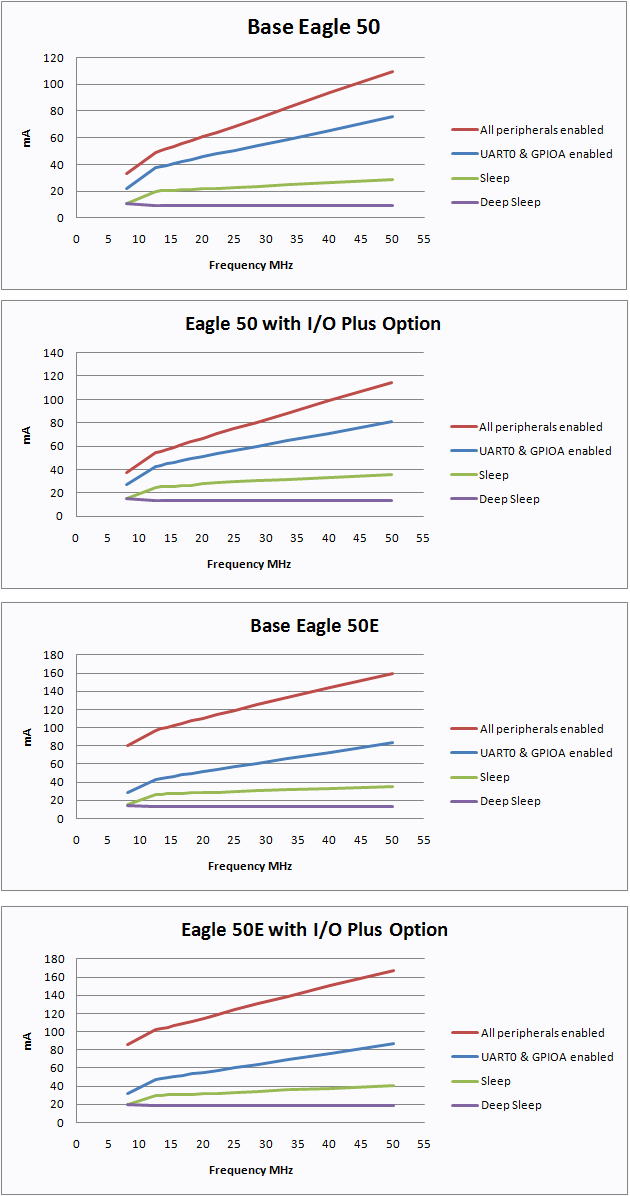

Supply Current Versus System Clock Frequency

Test Conditions: Vin (J1) = 5.63V, VCC = 3.3V, LM3Sxxx LDO set to 2.5V

Mechanical Dimensions

Below is the physical dimensions for the Eagle 50. The mounting holes will accept a #4 size screw.

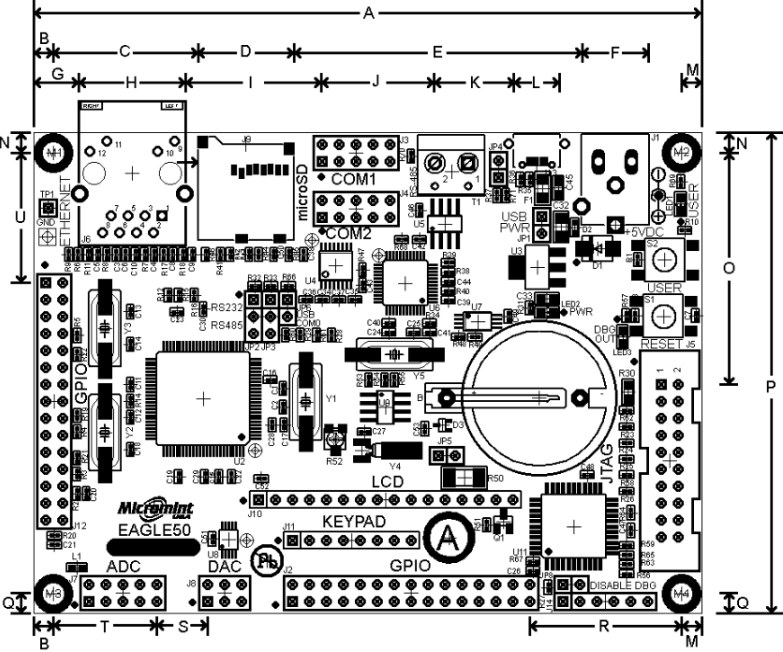

Eagle 50 Mechanical Dimensions

DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters
A	3.94	100.0	H	0.63	16.0	O	1.34	34.03
B	0.116	2.95	I	0.803	20.38	P	2.83	72.0
C	0.851	21.61	J	0.664	16.86	Q	0.115	2.92
D	0.567	14.4	K	0.473	12.01	R	0.895	22.73
E	1.69	43.0	L	0.275	6.98	S	0.3	7.62
F	0.4	10.16	M	0.117	2.97	T	0.608	15.44
G	0.265	6.73	N	0.12	3.04	U	0.76	19.3

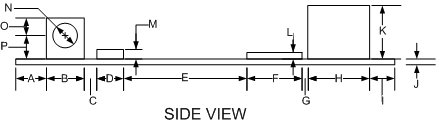

Eagle 50 Suggested Openings

DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters
A	0.33234	8.4415	E	1.26	32.0	I	0.261	6.63	M	0.136	3.45
B	0.3543	9.0	F	0.56693	14.40	J	0.06	1.524	N	0.269	6.83
C	0.117	2.9721	G	0.072	1.83	K	0.545	13.843	O	0.177	4.5
D	0.345	8.763	H	0.63	16.00	L	0.1	2.54	P	0.256	6.50

---
