Bambino-210 Manual/Mechanical and Electrical Characteristics

From Manuals

Absolute Minimum and Maximum Ratings

Characteristic	Minimum	Maximum	Unit
Voltage on J1	7.0	15.0	VDC
Voltage on VBAT (Coin Cell Battery Holder)	0.0	3.3	VDC
Voltage on ADC	0.0	3.3	VDC
Voltage on Digital Input	0.0	5.0	VDC
Operating Temperature	0	70	ºC
Storage Temperature	-50	125	ºC

The Bambino 210 is currently available for commercial temperature ranges. Contact the Micromint sales department if you require support for industrial temperature ranges.

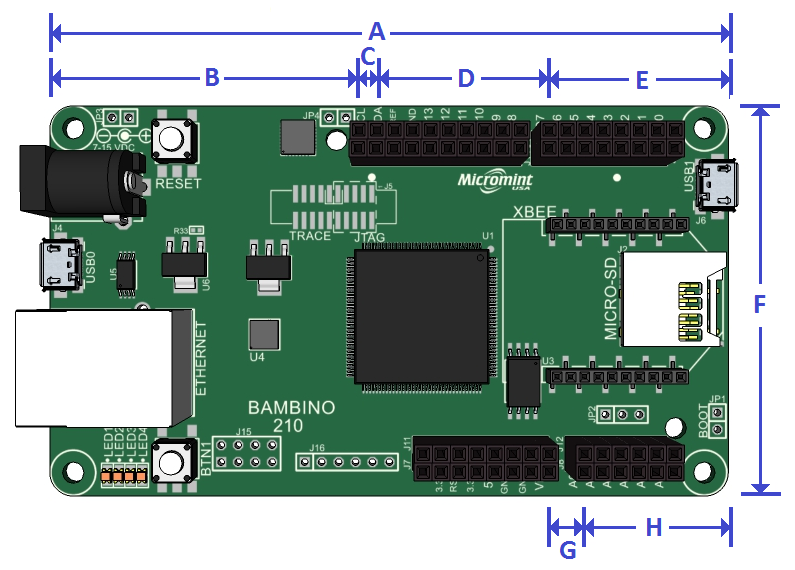

Mechanical Dimensions

Below is the physical dimensions for the Bambino 210. The mounting holes will accept a #4 size screw.

Lincoln 60 Mechanical Dimensions

DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters
A	4.0	101.6	C	0.1	2.54	E	1.11	28.194	G	0.2	5.08
B	1.83	46.482	D	0.61	15.494	F	2.3	58.42	H	0.91	23.114

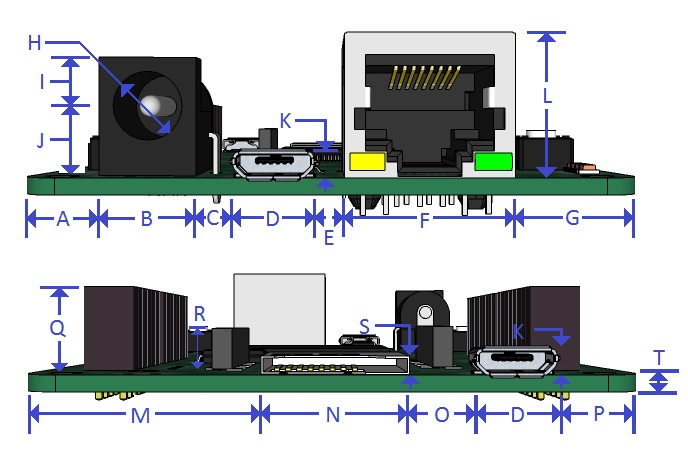

Lincoln 60 Suggested Openings

DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters	DIM	Inches	Millimeters
A	0.33	8.4	F	0.63	16.0	K	0.136	3.45	P	0.3	7.62
B	0.3543	9.0	G	0.47	11.94	L	0.545	13.843	Q	0.335	8.5
C	0.105	2.67	H	0.269	6.83	M	0.86	21.84	R	0.173	4.4
D	0.345	8.763	I	0.177	4.5	N	0.56693	14.40	S	0.1	2.54
E	0.065	1.65	J	0.256	6.5	O	0.225	5.715	T	0.06	1.524

---
