Bambino-210 Manual/Introduction
From Manuals
Contents |
Bambino Family of Controllers

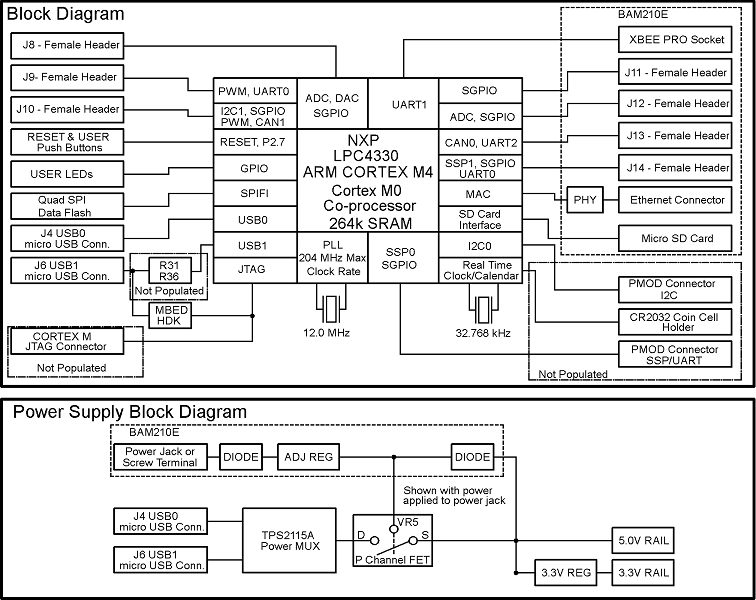

The Micromint Bambino 210 is a multi-core SBC designed for compatibility with the mbed framework. This popular framework for embedded software development includes extensive class libraries, tools and broad community support, allowing you to deliver embedded applications faster and more reliably. The Micromint Bambino 210 is powered by an NXP LPC4330, the first dual-core ARM Cortex-M microcontroller. Its Cortex-M4 and Cortex-M0 cores are both capable of concurrent 204 MHz operation. The hardware block diagram and feature summary is included below:
Bambino 210 Base Features
- 204 MHz Dual Core 32-bit ARM® Cortex™-M4/M0
- 264k SRAM
- 4M SPIFI Flash
- USB Device Port
- 2 Push Buttons
- 4 LEDs
- Arduino-compatible headers
Bambino 210E Features
- Same Base Features
- 8M SPIFI Flash
- 10 Gadgeteer Sockets
- 100 Mbps Ethernet
- microSD Socket
- Xbee Socket
