The Lincoln series of single board computers run on an ARM Cortex-M3 microcontroller with a vast array of peripherals from 10/100 Ethernet to USB. Through example programs and project files this family of single board computers can be developed from concept to production quickly. The Lincoln family is available in custom and standard configurations.
The Lincoln 60 is a single board computer designed for cost-sensitive control applications that require real-time performance, networking and extensive support of popular peripherals. It delivers 32-bit performance and features at a cost equivalent to legacy 8- and 16-bit controllers. Powered by a NXP ARM Cortex-M3 microcontroller, capable of operating at 120-MHz, the Lincoln 60 can fulfill demanding requirements in monitoring, instrumentation, data acquisition, process control, factory automation, DSP and many other applications. The 60E adds 100 Mbps Ethernet for high performance networking.
Code examples are included with the Lincoln 60 to get you started quickly. Applications can run standalone with no operating system or can use a compact real time operating system such as FreeRTOS and Nuttx. You can use popular IDEs together with the GNU and IAR compilers. The microSD card capability simplifies program and data storage. Remote access can be implemented via web or command line interfaces, providing off-site monitoring and maintenance capabilities. The JTAG interface speeds up application development and debugging.
Ports of popular Basic and LUA development tools are available for the Lincoln 60 to reduce application development time and simplify integration with code libraries developed for industrial and scientific environments. Using these tools, you can achieve significant functionality in a very short time. These open source tools can be easily extended, allowing a virtually unlimited number of possibilities.
Micromint USA provides free technical support by phone, email, or fax. Technical support emails are usually answered within one business day. Software and documentation updates are available on our website at www.micromint.com. Each product comes with a one year warranty.
Getting started with the Lincoln 60/60E can be done in just 6 steps.
The Lincoln 60E and Lincoln 60 come from the factory preloaded with applications. The Lincoln 60E has an Ethernet application called emac_uip that demonstrates a web-based interface. The Lincoln 60 has a micro SD card application called sd_card that demonstrates accessing a micro SD card through a serial command line. The full source code for both applications is provided on the Lincoln Tools Disk. The preloaded applications should be run to test the board after receiving it.

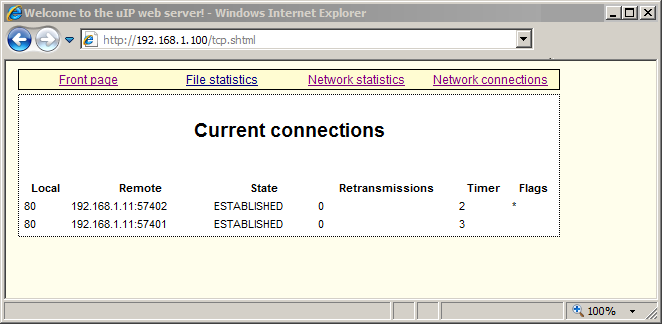

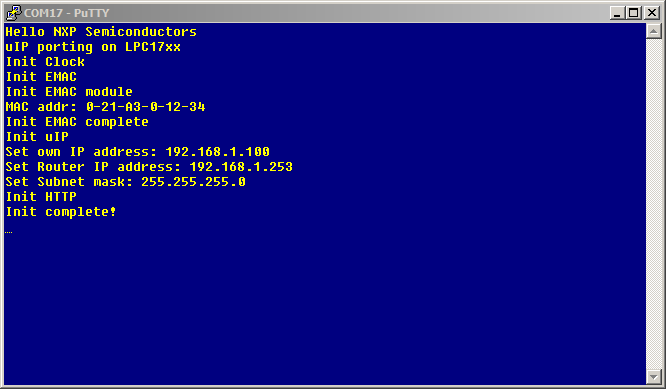

The Lincoln 60E SBC is shipped with the emac_uip example application that demonstrates a web-based interface using the Ethernet controller and the uIP TCP/IP Stack. DHCP is used to obtain an Ethernet address. Figure 2.1 shows the web page that will first be displayed.
In order to demonstrate this application on an Lincoln 60E without the optional USB Debug Port you will need the following software and equipment:
Please follow these steps to run the emac_uip application on an Lincoln 60E without the optional USB Debug Port:
In order to demonstrate the emac_uip application on an Lincoln 60E with the optional USB Debug Port you will need the following software and equipment:
Please follow these steps to run the emac_uip application on an Lincoln 60E with the optional USB Debug Port:

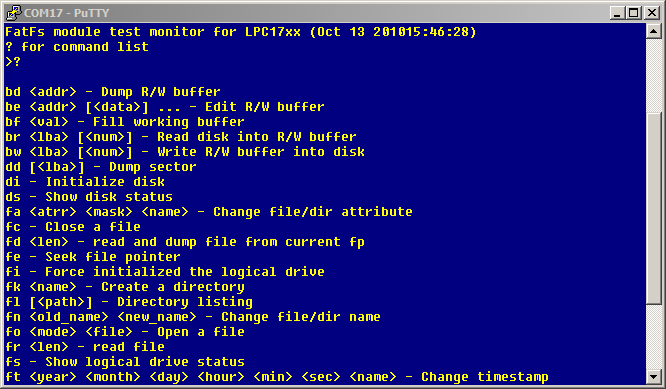

The Lincoln 60 SBC is shipped with the sd_card example application from the NXP CMSIS Library. This example application demonstrates reading a file system from a micro SD card. It makes use of FatFs, a FAT file system driver. The application provides a simple command console via the Lincoln 60?s COM1 serial port for issuing commands to view and navigate the file system on the SD card. Figure 2.2 shows what is displayed on a terminal program when the application is run.
In order to demonstrate the sd_card application on an Lincoln 60 without the optional USB Debug Port you will need the following software and equipment:
Please follow these steps to run the sd_card application on an Lincoln 60 without the optional USB Debug Port:
In order to demonstrate the sd_card application on an Lincoln 60 with the optional USB Debug Port you will need the following software and equipment:
Please follow these steps to run the sd_card application on an Lincoln 60 with the optional USB Debug Port:
The Lincoln Code Examples are generated from CMSIS and may be downloaded from the Software Updates section of the Software Updates Updates section of the Lincoln Wiki. After they are downloaded unzip them into a directory of your choice. Descriptions of the examples can be viewed on the Lincoln CMSIS Examples Page.
The Code Examples currently supports the following C and C++ compilers :
The IAR EWARM C/C++ compiler generally produces the smallest code sizes for ARM targets and has excellent integrated debugging capabilities versus the GNU Toolchain. If a GNU chain is used then an IDE needs to be chosen.
An IDE installs when the IAR C/C++ Compiler is installed where the GNU tool chains do not install one. Code::Blocks IDE and the Eclipse IDE are the IDEs currently supported by the Code Examples. Debugging is currently not supported in the Code::Blocks IDE. If a debug environment is needed the Eclipse IDE should be use.
The IAR EWARM Kickstart Edition is a 32 KB code-sized limited version of the IAR C/C++ compiler and debugger. It can be downloaded from IAR's website.

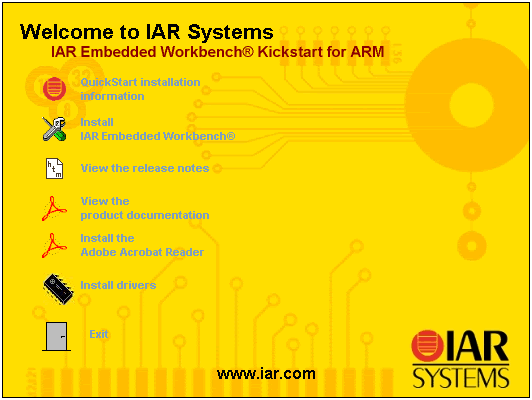

After downloading the EWARM-KS-CD click on the application to install the IAR Embedded Workbench for ARM. Select the ?Install IAR Embedded Workbench? option from the Applications main menu as shown in Figure 2.4. Follow the instructions in the installation application. We suggest that you use the default directories, and the ?Full? installation option.
The Code Examples currently support two GNU tool chains:

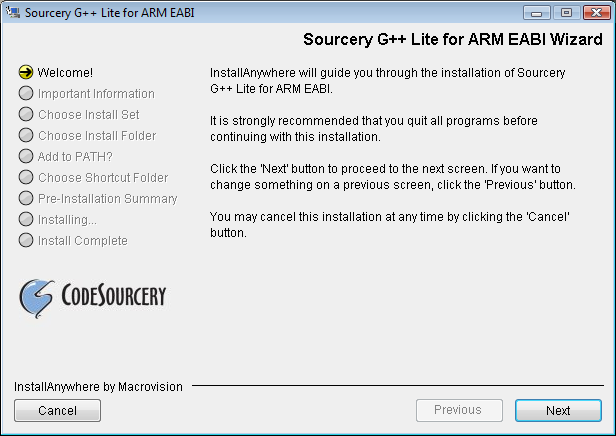

Download the Sourcery G++ Lite 2010q1 for ARM EABI version of Sourcery CodeBench Lite Edition for ARM from Mentor Graphics website. When it is finished downloading click on the application to install it and a screen similar to Figure 2.5 should appear. We suggest that you use the default directories during the installation.
If make is not installed on the computer then perform the following steps:
Installing the devkitARM GNU Compiler can be done in 6 steps.
Eclipse is a Java application and has the potential to be run on a wide variety of hardware and operating systems. Eclipse may install on systems with as little as 64MB of memory, however, we recommend to have 1GB of memory or more.

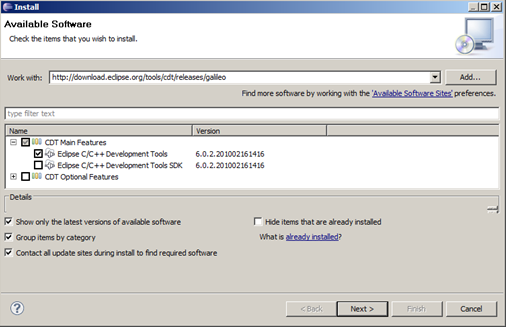

Follow these steps to install the Eclipse IDE:
Codeblocks is a cross-platform IDE built around wxWidgets, designed to be extensible and configurable. It can be downloaded from the Codeblocks website by clicking the following link: http://www.codeblocks.org/downloads

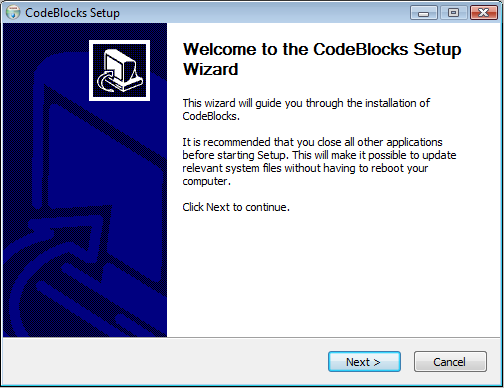

Install Codeblocks by clicking on the downloaded executable.

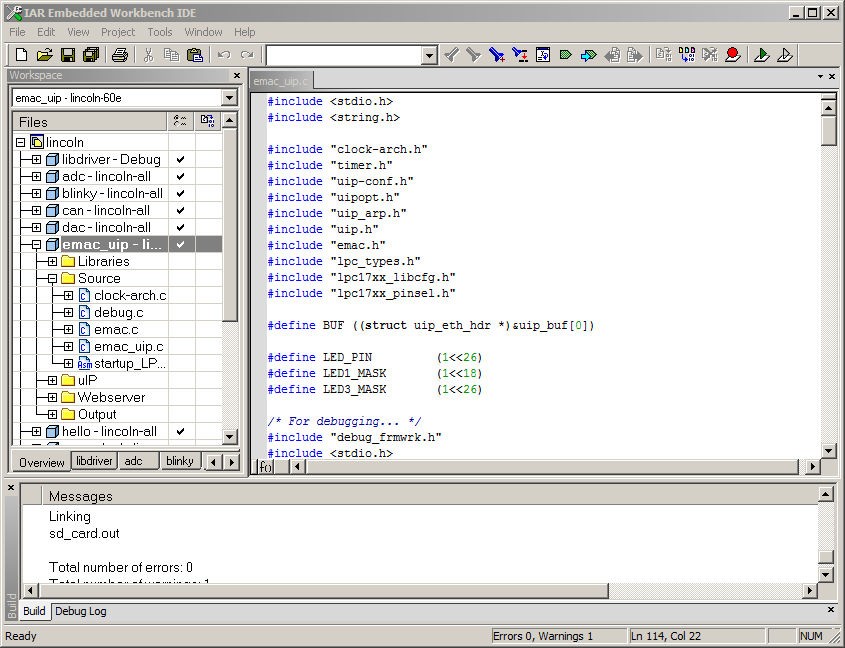

To load the CMSIS workspace open the IAR IDE then "File>Open>Workspace" and browse to "%USERPROFILE%\Projects\Micromint\Lincoln" and select the "lincoln.eww" file. A screen similar to that in Figure 2.5 should load. Select the Blinky project by clicking on the drop down menu. Be sure to select the board that you are using. In the case of Figure 2.5 the Lincoln 60E was being used. To rebuild the project select the "Make" button on the toolbar. You can also right click on the project name to select "Make" or "Rebuild". This will build a binary (.BIN) image file in the "%USERPROFILE%\Projects\Micromint\Lincoln\CMSIS\projects\blinky\lincoln-all\ewarm\Exe" directory of the project. To load the application on the board please see the Firmware Download Procedures section in this manual. If the build and download is successful, the user LED on the Lincoln SBC will start blinking.

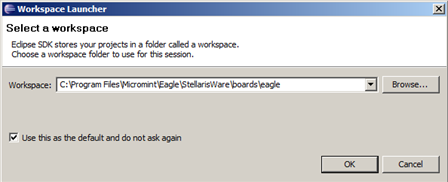

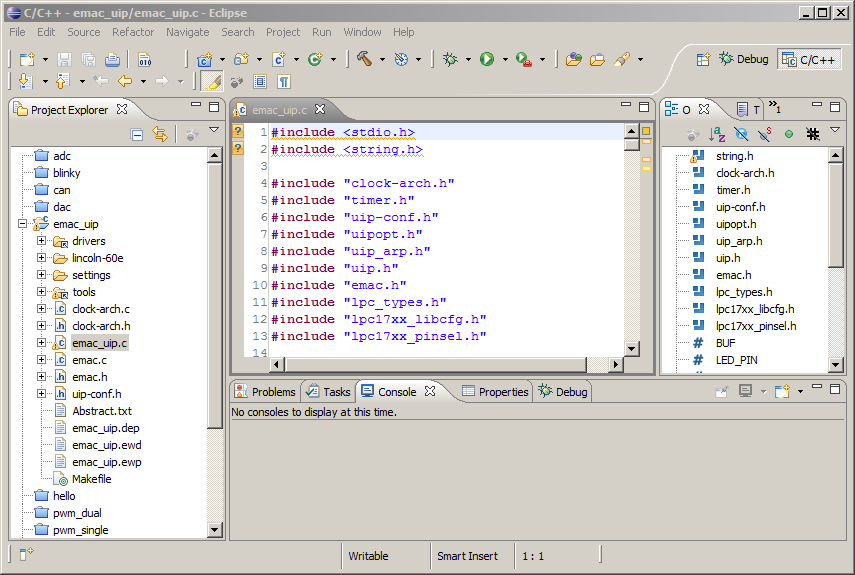

To load the CMSIS workspace in the Eclipse IDE, select the workspace on the "%USERPROFILE%\My Documents\Projects\Micromint\Lincoln\CMSIS\projects" subdirectory when Eclipse IDE starts. You will see a screen similar to that on Figure 2.6. Select the Blinky project by right clicking the project name and selecting "Open Project". The first time the Lincoln BSP is installed the files need to be refreshed. To refresh the files just simply press F5. The default compiler for the Lincoln BSP is Sourcery G++ Lite. If you installed devkitARM instead then the compiler will have to be switched. To change the compiler to devkitARM click on "Window>Preferences>C/C++>Build>Environtment" and add a variable called "COMPILER" with the value set to "devkitARM". This will have to be done on all of the example projects. To build the project select the "build" button on the toolbar. You can also right click on the project name to select "Build" . This will build a binary (.BIN) image file in the "board type\gcc\" directory of the project. For example the binary for the blinky project using the Lincoln 60E is in the "%USERPROFILE%\Projects\Micromint\Lincoln\CMSIS\projects\blinky\lincoln-all\gcc" directory if the Lincoln BSP was installed in the default directory. To load the application on the board please see the Firmware Download Procedures section in this manual. If the build and download is successful, the user LED on the Lincoln SBC will start blinking.
All example programs include a Makefile that allows you to build binary images from the command line using the GNU toolchain. The GNU "make" utility is installed as part of the GNU toolchain on the Lincoln Tools Disk. To build an image using the command line, just change to the project directory and execute "make". To build the image for blinky you would perform the following:
There are several options to download firmware to the Lincoln SBC. This section covers firmware downloads using a J-Link debugger or a USB Debugger. The method used to download firmware will depend on what hardware is being used.
The optional Debugger has the same set-up as the picoJTAG. Please see the picoJTAGs Wiki on how to download code examples toe the Lincoln 60 or 60E: http://wiki.micromint.com/index.php/PicoJTAG_Manual/Getting_Started#IAR_Plugin

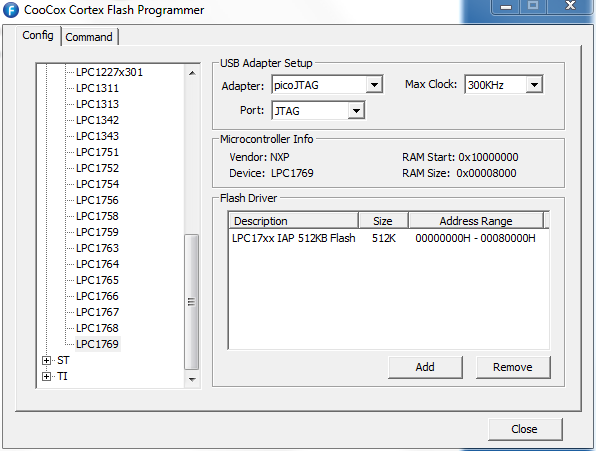

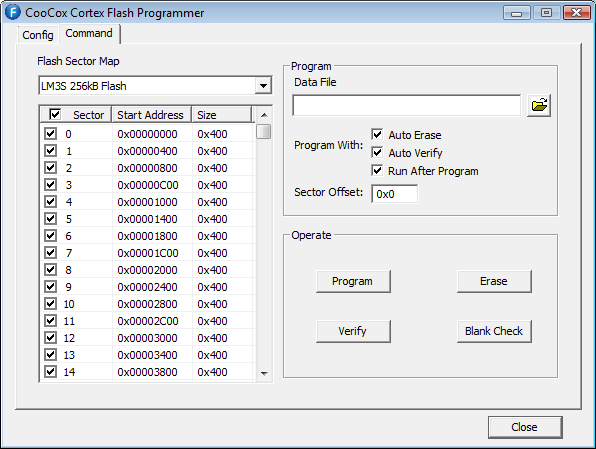

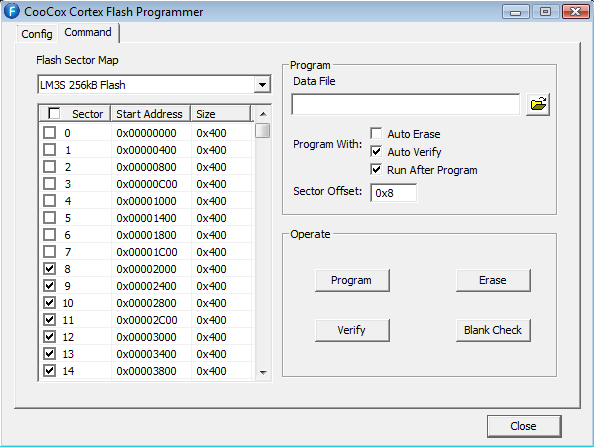

CooCox CoFlash is a stand-alone Cortex M Flash Programming software for PCs running Microsoft Windows. It can be downloaded from the following website: http://www.coocox.org/CoFlash_Programmer.htm

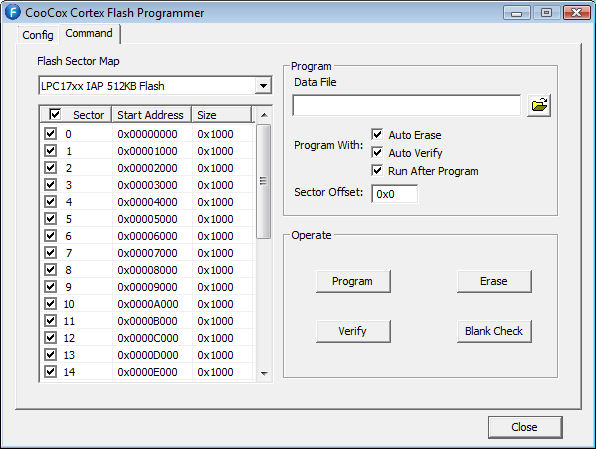

Follow these steps to program a Cortex M microcontroller using CoFlash and the picoJTAG:

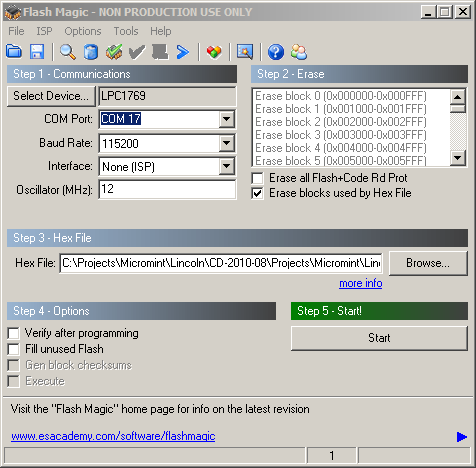

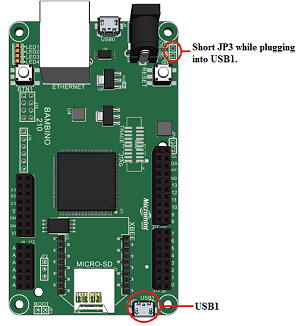

The Lincoln 60 and Lincoln 60E can be used with the Flash Magic software to program the board. This software can be downloaded from http://www.flashmagictool.com/. After installing it, select Programs> Flash Magic> Flash Magic from your Windows Start menu. Go to the "Setup" tab to see a screen similar to that in Figure 2.7. On "Device" select "LPC1769". Set the baudrate to 115200 bps, ISP interface and 12 MHz oscillator.
The application's HEX file can be downloaded using the FlashMagic using the optional USB Debugger by following these steps:
The application's HEX file can be downloaded using the FlashMagic using COM1 by following these steps:

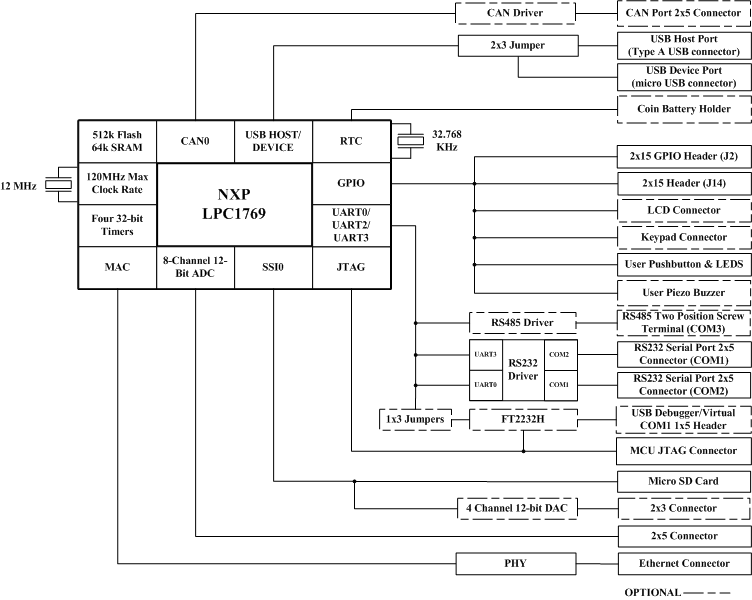

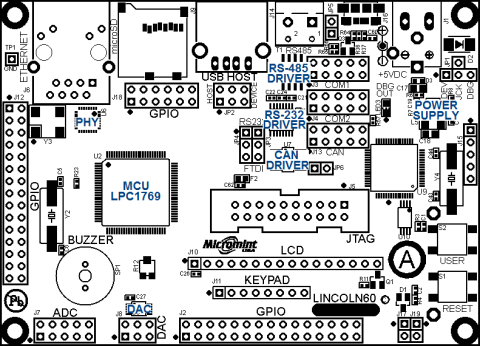

The following image shows where some of the hardware components are located.

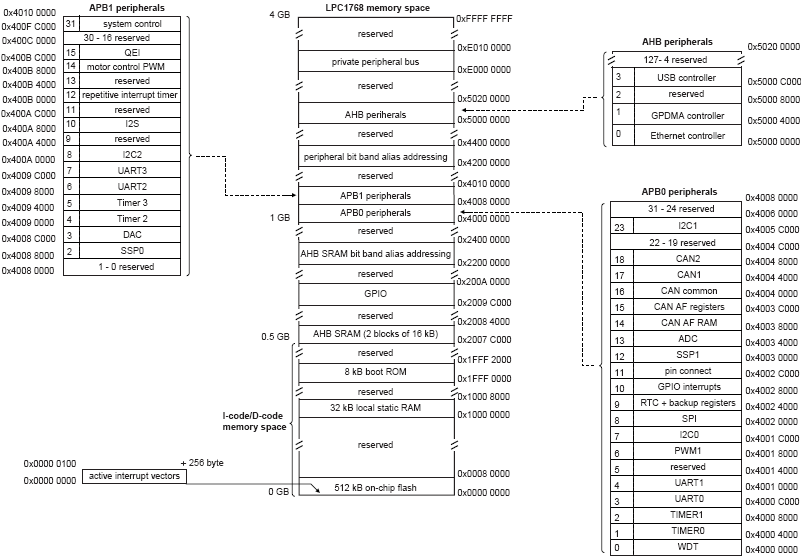

The Lincoln 60 includes a NXP LPC1769 microcontroller. These 32-bit ARM Cortex-M3 RISC microcontroller are capable of 120-MHz operation with a Thumb2 instruction set for smaller object code. It uses a Harvard architecture with separate local instruction and data buses as well as a separate peripherals bus. Please see NXP?s LPC1769 Microcontroller Data Sheet for more information and register definitions.
LPC1769 key features:
The Lincoln 60's power supply is designed with Diodes Incorporated's AP6015 high efficiency step-down switching power supply. The power supplies input voltage can come from the Lincoln 60's USB device port, optional USB debug port, or J1 connector. A diode (D1) will protect the Lincoln 60 should polarity of the power supply be reversed on the J1 connector. The power supply is capable of outputting 3.3 VDC with a maximum output current of 800 mA. It has an input operating voltage range of 3.9 VDC to 5.8 VDC. Most of the circuitry on the Lincoln 60 operates from the 3.3V output with typical current requirements for the Lincoln 60 of ???mA and ???mA for the Lincoln 60E. A USB device being powered from the Lincoln 60's USB Host port, the LCD, and the optional CAN driver are the only devices that need more than 3.3 VDC to operate. A diode drop of 0.3 VDC and a maximum of 2.0 A through D1 must be taken into consideration when selecting a power supply for J1.
The Lincoln 60E includes a Micrel KSZ8041NL 10 Base-T/100 Base-TX Physical Layer Transceiver (PHY). The PHY provides MII/RMII interface to transmit and receive data. It has HP Auto MDI/MDI-X to eliminate the need to differentiate between crossover and straight-through cables. For further information please see Micrel?s KSZ8041NL Data Sheet.
The Lincoln 60 includes RS-232 drivers that consist of two transmitters, two line receivers, and a dual charge-pump Circuit. The driver provides the electrical interface between the microcontroller?s UART and the serial-port connector. The devices operates at data signaling rates up to 500 kbps.
The Lincoln 60 optionally comes with a National Semiconductor?s DAC124S085 general purpose digital-to-analog converter (DAC). The DAC has four channels with a resolution of 12-bit. The output amplifiers allow for a rail-to-rail output swing from 0 to 3.3V. Communication to the DAC is done through a three wire synchronous serial interface that operates up to 40 MHz. The DAC?s outputs have a settling time of 6µs. It allows for simultaneous output updating. For further information please see National Semiconductor?s DAC104S085 Data Sheet.
The Lincoln 60 optionally comes with a CAN transceiver from Maxim Semiconductors. It provides the interface between the microcontroller?s CAN port and the CAN port?s connector. The MAX3059ASA+ CAN transceiver had a maximum data rate of 1Mbps. It features three different modes of operation high speed, slope control, and shutdown. For further information please see Maxim?s MAX3058-MAX3059 Data Sheet.
The Lincoln 60 optionally comes with a RS-485 driver half-duplex transceiver. It provides the electrical interface between the microcontroller?s UART and the RS-485 port?s screw terminal. The half duplex transceiver is suitable for data rates up to 10Mbps over long twisted pairs.
NEXT: User Interfaces, Connectors, and Jumpers

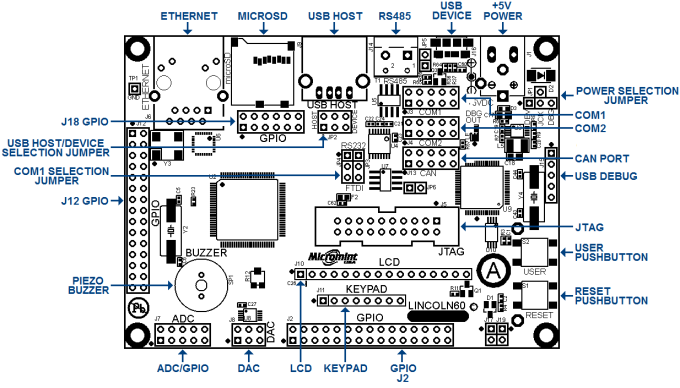

The following image shows where the connectors, headers, and jumpers are located on the Lincoln 60.
The main power for the Lincoln 60 SBC can be from the J1 connector, the USB device port, or by the debugger (external or onboard) depending on how JP1 is set. Figure 4.1 is the pin-out for JP1 and shows the board being powered by J1. The typical current requirements are 60 mA for the Lincoln 60 and 160 mA for the Lincoln 60E.
J1 comes standard with a 2.5 mm positive center tapped female power supply jack. It can be populated with a 2 position screw terminal upon request. Figure 4.2 shows the different J1 configurations. A diode (D1) will protect the Lincoln 60 should polarity of the power supply be reversed on the J1 connector. The protection diode has a voltage drop of 0.3V and is limited to a maximum of 2 amperes through it. The specifications for D1 must be taken into consideration when selecting a power supply while using the LCD port, USB Host port, and CAN port.
The Lincoln 60 may also be powered through the USB Device port (J16) by changing the jumper on JP1 to pins 1 and 2. Current draw will be limited to the USB host port that is supplying the power. Most computers? USB host ports allow a maximum current draw of 500mA.
Setting JP1 to pins 2 and 3 will allow the board to be powered through the optional USB debug port (J15) or through the JTAG connector (J5). The maximum available current for the board will be limited to the USB host port that is supplying the power to the optional USB debug port. A maximum of 500mA total current draw is allowed when powering the board through the JTAG connector or is limited by the device supplying the power. The J-Link for example only allows 300mA of current.
The Lincoln 60E is equipped with a fully-integrated 10/100 Mbps Ethernet port. The Media Access Control (MAC) is implemented in the LPC1769 and the Physical (PHY) layer is implemented with Micrel?s KSZ8041NL. J6 is the RJ-45 connector and it has integrated magnetics and LEDs completes the Ethernet sub-system. Please see the KSZ8041NL data sheet for further information on the PHY and the LPC1769 data sheet for the MAC.

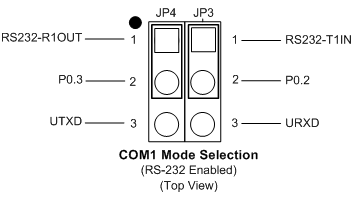

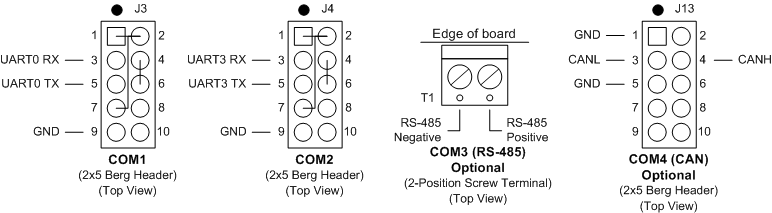

The LPC1769 has a total of 4 Universal Asynchronous Receivers/Transmitters (UART). Two of the UARTs are are level shifted to RS-232 levels. UART0 (COM1) and UART3 (COM2) can be accessed through a 2x5 pin berg header. Please see figure 4.3 for the pin outs of COM1 (J3) and COM2 (J4) connectors. The two serial ports support software handshaking (XON/XOFF) and are considered to be Data Terminal Equipment(DTE). In order to communicate to a Personal Computer a null modem cable is required. To simplify interfacing to devices using hardware handshaking, a loopback is implemented on the modem control signals, from RTS to CTS and from DTR to CD and DSR. Note that the loopbacks do not provide flow control so software handshaking should be used when proper flow control is desired.
The transmitter for COM1 is port 0 bit 2 and the receiver is port 0 bit 3 on the LPC1769 microcontroller. If the optional USB Debug port is populated UART0 may be configured to communicate over USB by placing moving jumpers JP3 and JP4 to pins 2&3. UART0 can be accessed through the USB Debug Ports 1x5 pin header (J15). See figure 4.4 for shows the jumper settings selecting RS-232 levels or for COM1. The transmitter for COM2 is port 0 bit 0 and the receiver is port 0 bit 1 on the LPC1769.
A third UART is level shifted to RS-485 levels if the I/O plus option is populated. UART1 (COM3) can be accessed through screw terminals T1. The RS-485 transmitter is enabled by making port 2 bit 7, on the LPC1769, a logic 1. The transmitter for COM3 is port 2 bit 0 and the receiver is port 2 bit 1 on the LPC1769. The LPC1769's UART1 supports RS-485 modes of operation. Please consult the LPC1769 User's Manual for further details. The RS-485 network can be terminated with a 120 ohm resistor by placing a jumper on JP5. See figure 4.3 for the pin out of COM3.
The LPC1769 also has two Controller Area Network (CAN) ports avaialble. The I/O plus option populates a CAN tranciever for the CAN1 controller (COM4). COM4 can be accessed through a 2x5 pin berg header. See Figure 4.3 for the pin out of the COM4 (J13) connector. The transmitter for COM4 is port 0 bit 22 and the receiver is port 0 bit 21 on the LPC1769. The CAN network can be terminated with a 120 ohm resistor by placing a jumper on JP6.

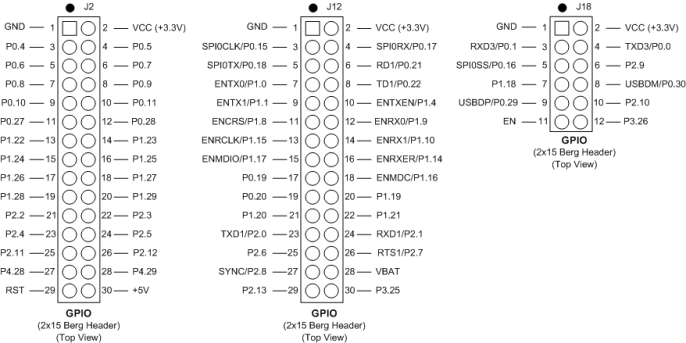

There are seventy total bits of GPIO available on the Lincoln 60 and forty-four bits available on the Lincoln 60E. Twenty-six bits of GPIO are available on J2 for both the Lincoln 60 and Lincoln 60E. Twenty-seven bits of GPIO are available on J12 only for the Lincoln 60. J12 is not populated when the board is configured as a Lincoln 60E due to most of the GPIO being used for the Ethernet PHY signals. Nine bits of GPIO are available on J18 but it is not populated because the GPIO are used for on board perphrials such as COM2, USB Host, USB Device, User LEDs, User Pushbutton, and microSD. Eight bits of GPIO are available on J7. Please see the ADC/GPIO section for further details. Figure 4.5 has the pin outs for J2, J12, and J18.
Some of the GPIO on J2 and J12 have alternate functions other than digital inputs and outputs and are shared with some of the hardware on the board. Table 4.1 lists the alternate functions, the hardware it is shared with, and a brief description of the alternate function for connector J2. Table 4.2 lists the alternate functions, the hardware it is shared with, and a brief description of the alternate function for connector J14. Table 4.3 lists the alternate functions, the hardware it is shared with, and a brief description of the alternate function for connector J18. For further information on the alternate functions please refer to the LPC1769 data sheet.
| J2 Pin# | Signal | Alternate Functions | Notes | Shared Hardware |
| 1 | GND | Digital Ground | ||
| 2 | VCC | 3.3 VDC | ||
| 3 | P0.4 | I2SRX_CLK/RD2/CAP2.0 | I2S Receive Clock/CAN2 Receive/Timer 2 Capture Input 0 | |
| 4 | P0.5 | I2SRX_WS/TD2/CAP2.1 | I2S Receive Word Select/CAN2 Transmit/Timer 2 Capture Input 1 | |
| 5 | P0.6 | I2SRX_SDA/SSEL1/MAT2.0 | I2S Receive Data/SSP1 Slave Select/Timer 2 Match Output 0 | |
| 6 | P0.7 | I2STX_CLK/SCK1/MAT2.1 | I2S Transmit Clock/SSP1 Serial Clock/Timer 2 Match Output 1 | |
| 7 | P0.8 | I2STX_WS/MISO1/MAT2.2 | I2S Transmit Word Select/SSP1 Master In Slave Out/Timer 2 Match Output 2 | |
| 8 | P0.9 | I2STX_SDA/MOSI1/MAT2.4 | I2S Transmit Data/SSP1 Master Out Slave /Timer 2 Match Output 3 | |
| 9 | P0.10 | TXD2/SDA2/MAT3.0 | UART 2 Transmitter/I2C2 Data/Timer 3 Match Output 0 | |
| 10 | P0.11 | RXD2/SCL2/MAT3.1 | UART2 Receiver/I2C2 Clock/Timer 3 Match Output 1 | |
| 11 | P0.27 | SDA0 | I2C0 Data | Keypad(J11) |
| 12 | P0.28 | SCL0 | I2C0 Clock | Keypad(J11) |
| 13 | P1.22 | MC0B/MAT1.0 | Motor Control PWM0 Ouput B/Timer 1 Match Output 0 | LCD(J10) |
| 14 | P1.23 | MCFB1/PWM1.4/MISO0 | Motor Control PWM1 Feedback Input/PWM1 Output 4 output/Master In slave Out | LCD(J10) |
| 15 | P1.24 | MCFB2/PWM1.5/MOSI0 | Motor Control PWM2 Feedback Input/PWM1 Output 5/SSP0 Master Out Slave In | LCD(J10) |
| 16 | P1.25 | MC1A/MAT1.1 | Motor Control PWM1 Output A/Timer 1 Match Output 1 | LCD(J10) |
| 17 | P1.26 | MC1B/PWM1.6/CAP0.0 | Motor Control PWM1 Output B/PWM1 Output 6/Timer 0 Capture Input 0 | LCD(J10) |
| 18 | P1.27 | CLKOUT/CAP0.1 | Clock Output Pin/Timer 0 Capture Input 1 | LCD(J10) |
| 19 | P1.28 | MC2A1.0/PCAP1.1/MAT0.0 | Motor Control PWM2 Output A/PWM1 Capture Input 0/Timer 0 Match Output 0 | LCD(J10) |
| 20 | P1.29 | MC2B/PCAP1.1/MAT0.1 | Motor Control PWM2 Output B/PWM1 Capture Input 1/Timer 0 Match Output 1 | LCD(J10) |
| 21 | P2.2 | PWM1.3/CTS1/TRACEDATA.3 | PWM1 Output 3/UART1 Clear to Send/Trace Dat bit 3 | Keypad(J11) |
| 22 | P2.3 | PWM1.4/DCD1/TRACEDATA.2 | PWM1 Output 4/UART1 Data Carrier Detect/Trace Dat bit 2 | Keypad(J11) |
| 23 | P2.4 | PWM1.5/DSR1/TRACEDATA.1 | PWM1 Output 5/UART1 Data Set Ready/Trace Dat bit 1 | Keypad(J11) |
| 24 | P2.5 | PWM1.6/DTR1/TRACEDATA.0 | PWM1 Output 6/UART1 Data Terminal Ready/Trace Dat bit 0 | Keypad(J11) |
| 25 | P2.11 | EINT1/I2STX_CLK | External Interrupt 1/I2S Transmit Clock | |
| 26 | P2.12 | EINT2/I2STX_WS | External Interrupt 2/I2S Transmit Word Select | |
| 27 | P4.28 | RX_MCLK/MAT2.0/TXD3 | I2S Receive Master Clock/Timer 2 Capture Input 0/UART3 Transmitter | |
| 28 | P4.29 | TX_MCLK/MAT2.1/RXD3 | I2S Transmit Master Clock/Timer 2 Capture Input 1/UART3 Receiver | |
| 29 | RST | Microcontroller Reset | ||
| 30 | +5V | +5 VDC |
| J12 Pin# | Signal | Alternate Functions | Notes | Shared Hardware |
| 1 | GND | Digital Ground | ||
| 2 | VCC | 3.3 VDC | ||
| 3 | P0.15 | TXD1/SCK0/SCK | UART1 Transmitter/SSP0 Clock/SPI Clock | microSD/DAC |
| 4 | P0.17 | CTS1/MISO0/MISO | UART1 Clear to Send/SSP0 Master In Slave Out/SPI Master In Slave Out | microSD |
| 5 | P0.18 | DCD1/MOSI0/MOSI | UART1 Data Carrier Detect/SSP0 Master Out Slave In/SPI Master Out Slave In | microSD/DAC |
| 6 | P0.21(1) | RI1/RD1 | UART1 Ring Indicator/CAN1 Receiver | CAN |
| 7 | P1.0 | ENET_TXD0 | Ethernet Transmit Data 0 | Ethernet PHY |
| 8 | P0.22 | RTS1/TD1 | UART1 Request to Send/CAN1 Transmitter | CAN |
| 9 | P1.1 | ENET_TXD1 | Ethernet transmit data 1 | Ethernet PHY |
| 10 | P1.4 | ENET_TX_EN | Ethernet transmit data enable | Ethernet PHY |
| 11 | P1.8 | ENET_CRS | Ethernet carrier sense | Ethernet PHY |
| 12 | P1.9 | ENET_RXD0 | Ethernet receive data | Ethernet PHY |
| 13 | P1.15 | ENET_REF_CLK | Ethernet reference clock | Ethernet PHY |
| 14 | P1.10 | ENET_RXD1 | Ethernet PHY | |
| 15 | P1.17 | ENET_MDIO | Ethernet MIIM data input and output | Ethernet PHY |
| 16 | P1.14 | ENET_RX_ER | Ethernet receive error | Ethernet PHY |
| 17 | P0.19 | DSR1/SDA1 | UART1 Data Set Ready/I2C1 Data | Keypad(J11) |
| 18 | P1.16 | ENET_MDC | Ethernet MIIM clock | Ethernet PHY |
| 19 | P0.20 | DTR1/SCL1 | UART1 Data Terminal Ready/I2C1 Clock | Keypad(J11) |
| 20 | P1.19 | MC0A/CAP1.1 | Motor Control PWM0 Output A/Timer 1 Capture Input 1 | LCD(J10) |
| 21 | P1.20 | MCFB0/PWM1.2/SCK0 | Motor Control PWM0 Feedback Input/PWM1 Output 2/SSP0 Clock | LCD(J10) |
| 22 | P1.21 | MCABORT/PWM1.3/SSEL0 | Motor Control PWM Emergency Abort/PWM1 Output 3/SSP0 Slave Select | LCD(J10) |
| 23 | P2.0 | PWM1.1/TXD1 | PWM1 Output 1/UART1 Transmitter | COM3 (RS485) |
| 24 | P2.1(2) | PWM1.2/RXD1 | PWM1 Output 2/UART1 Receiver | COM3 (RS485) |
| 25 | P2.6 | PCAP1.0/RI1/TRACECLK | PWM1 Capture Input 0/UART1 Ring Indicator/Trace Clock | LCD(J10) |
| 26 | P2.7 | RD2/RTS1 | CAN2 Receiver/UART1 Request to Send | COM3 (RS485) |
| 27 | P2.8 | TD2/TXD2 | CAN2 Transmitter/UART2 Transmitter | DAC |
| 28 | VBAT | Supply pin for LPC1769\'s RTC | Coin Battery | |
| 29 | P2.13 | EINT3/I2STX_SDA | External Interrupt 3/I2S Transmit Data | |
| 30 | P3.25 | MAT0.0/PWM1.2 | Timer 0 Match Output 0/ PWM1 Output 2 | User Buzzer |
(1) - P0.21 should not be used as a GPIO when the CAN tranciever (U7) is populated due to the recevier driving the pin.
(2) - P2.1 should not be used as a GPIO when the RS-485 tranceiver (U5) is populated due to the receiver driving the pin.
| J18 Pin# | Signal | Alternate Functions | Notes | Shared Hardware |
| 1 | GND | Digital Ground | ||
| 2 | VCC | 3.3 VDC | ||
| 3 | P0.1 | TD1/RXD3/SCL1 | CAN1 Transmitter/UART3 Receiver/I2C1 Clock | COM2 |
| 4 | P0.0 | RD1/TXD3/SDA1 | CAN1 Receiver/UART3 Transmitter/I2C1 Data | COM2 |
| 5 | P0.16 | RXD1/SSEL0/SSEL | UART1 Receiver/SSP0 Slave Select/ SPI Slave Select | microSD |
| 6 | P2.9 | USB_CONNECT/RXD2 | USB Device Soft Connect Feature/UART2 Receiver | USB Device |
| 7 | P1.18 | USB_UP_LED/PWM1.1/CAP1.0 | USB Good Link LED Indicator/PWM1 Output 1/Timer 1 Capture Input 0 | USER LED1 |
| 8 | P0.30 | USB_D- | USB D- Line | USB Host/Device |
| 9 | P0.29 | USB_D+ | USB D+ Line | USB Host/Device |
| 10 | P2.10 | EINT0/NMI | External Interrupt 0/Non-maskable Interrupt | USER PB |
| 11 | EN | Switching Power Supply Enable | ||
| 12 | P3.26 | STCLK/MAT0.1/PWM1.3 | System Tick Timer Clock Input/Timer 0 Match Output 1/PWM1 Output 3 | USER LED2 |
The Lincoln 60?s eight channels of 12-bit Analog to Digital Converter (ADC) can be connected to through J7. See figure 4.6 for the pin out of the ADC connector. The ADC is accessed directly through the LPC1769 microcontroller. It is capable of 200k samples/second and can be triggered to read through software, timers, or GPIO. Each channel of the ADC are multiplexed with digital inputs and outputs. Table 4.4 lists the alternate functions, the hardware it is shared with, and a brief description of the alternate function for connector J7. AD0.6 and AD0.7 are used for COM1. If an application needs to have eight channels of ADC then COM1 can be disconnected from J7 by removing R68 and R69 from the bottom of the board by JP3 and JP4.
| J7 Pin# | Signal | Alternate Functions | Notes | Shared Hardware |
| 1 | P0.23 | AD0.0/I2SRX_CLK | Analog to Digital Converter 0 Channel 0/I2S Receive Clock | |
| 2 | P1.30 | AD0.4/VBUS | Analog to Digital Converter 0 Channel 4/Monitors Presence of USB Device Power | |
| 3 | P0.24 | AD0.1/I2SRX_WS/CAP3.1 | Analog to Digital Converter 0 Channel 1/I2S Receive Word Select/Timer 3 Capture Input 1 | |
| 4 | P1.31 | AD0.5/SCK1 | Analog to Digital Converter 0 Channel 5/SSP1 Clock | |
| 5 | P0.25 | AD0.2/TXD3 | Analog to Digital Converter 0 Channel 2/UART3 Transmitter | |
| 6 | P0.3 | AD0.6/RXD0 | Analog to Digital Converter 0 Channel 6/UART0 Receiver | COM1 |
| 7 | P0.26 | AD0.3/AOUT/RXD3 | Analog to Digital Converter 0 Channel 3/DAC Output/UART3 Receiver | |
| 8 | P0.2 | AD0.7/TXD0 | Analog to Digital Converter 0 Channel 7/UART0 Transmitter | COM1 |
| 9 | AGND | Analog Ground | ||
| 10 | AGND | Analog Ground |
The Lincoln 60?s four channels of 12-bit DAC can be connected to through J8. Please refer to figure 4.10 for the pin out of the DAC connector. It is capable of outputting voltages between 0 and 3.3V. The DAC is accessed through the LPC1769's SSP0 port. Port 2 bit 8 is the DAC?s sync input for loading the conversion count into the DAC. The DAC can be updated at a maximum of 150 kHz for 1 channel. The data transfer is 16-bits at 50 MHz which is a total of 320 nS per data transfer but the DAC has a settling time of 6 µS so the total time needed is 6.32 µS. All 4 channels of the DAC can be updated at a maximum of 137 kHz. This is accomplished by sending the data for all 4 channels and updating all of the outputs on the last data transfer.
A 4x4 matrix keypad using a 16-pin (2x8) ribbon cable can be connected to port 1 and port 2 of the microcontroller through J11. Figure 4.8 is the pin out for the keypad connector.

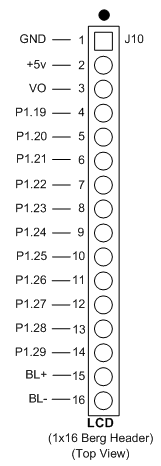

A standard alphanumeric LCD may be connected to J10 through a 32-pin (2x16) ribbon cable. Port 1.22 through P1.29 are used for the LCD?s data bus. The LCD?s control signals are connected to P1.19 through P1.21 the microcontroller. P1.19 controls the LCDs register select, P1.20 controls the read/write signal and P1.21 controls the enable signal. The backlight is controlled by P2.6. If port 2 bit 6 is logic 1 then the backlight will be illuminated. The contrast for the LCD may be adjusted by turning potentiometer R12 located next to J10. Please see figure 4.9 for the LCD?s connector pin out. AZ Displays ACM2004D series is recommended for use with the Lincoln 60/60E. http://www.azdisplays.com/index.php?id=Character_Modules&product=c2004d
The microSD socket (J9) enables micro-secure-digital memory cards to be plugged into the Lincoln 60 microcontroller board. The microSD card allows the user the ability of a standard removable media for transferring data to and from the Lincoln 60. The LPC1769 interfaces to the microSD card through the SSP0 port.
The Lincoln 60 comes standard with a user pushbutton, a reset push button, and two user LEDs. The user push button is connected to port 2 bit 10 with a 22k-ohm pull-up resistor connected to it. User LED1 can be illuminated by clearing port 1 bit 18 of the LPC1769. User LED2 can be illuminated by clearing port 3 bit 26.
The LPC1769 has a serial bootloader in ROM when it is shipped from the factory. The serial bootloader can be initiated by pressing and holding the user pushbutton while pressing and releasing the reset button. This allows the user to update the application through COM1.
The I/O options include a Piezo buzzer that can be used for audible alarms. The buzzer needs a square wave output from Port 3 bit 25 on the LPC1769 in order to generate an alarm. A 4 kHz square wave will generate 70db. P3.25 can be configured as output 2 for PWM1 to generate the square wave needed without creating overhead for the MCU.
The Lincoln 60's microcontroller has a built in real-time clock calendar that can be battery backed by supplying 2.1 VDC to 3.3 VDC to the VBAT pin on the LPC1769. A coin cell battery holder is populated on the bottom of the board with the I/O plus options and holds a CR2032 series coin cell. Power is only drawn from the battery when the power is off to the Lincoln 60.

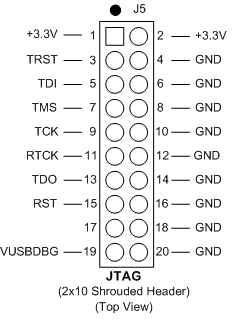

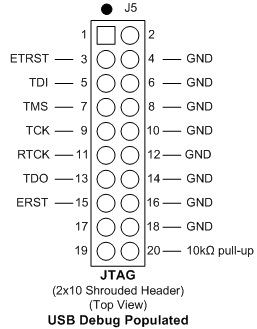

The JTAG port (J5) can be used for software download and debugging, reducing the need for an in-circuit emulator. For detailed information on the operation of the JTAG port and TAP controller, please refer to IEEE Standard 1149.1-Test Access Port and Boundary-Scan Architecture. Figure 4.10 shows the pin out for J5.
Debugging and program updates can also be performed using the optional USB debug port accessible through a 1x5 berg header (J15). The USB debug port is supported by the following development tools:
The USB debug port also allows UART0 to communicate over USB. Please see section 4.3 for further information. Figure 4.11 shows the pin out for the JTAG connector when the USB Debug option is populated. Figure 4.12 shows the pin out for the USB debug port's connector.
The MBED HDK is powered by NXP's LPC11U35 microcontroller. The MBED HDK is compliant with the USB V2.0 full-speed device specification. It's connector is a micro USB Type AB and is designated J15.
The MBED HDK also allows UART0 to communicate over USB. Please see section 4.3 for further information.

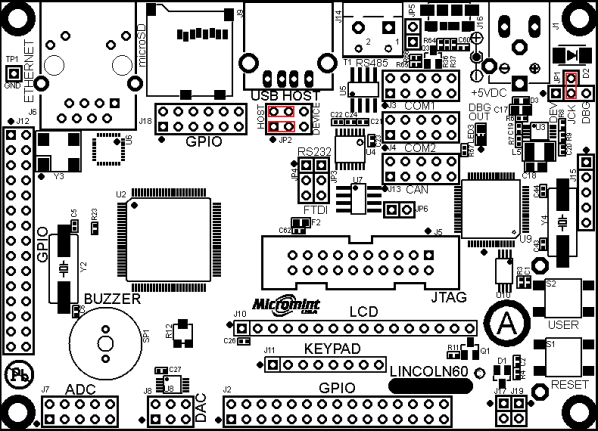

Figure 4.13 and 4.14 show the default jumper configuration for the Lincoln 60. All boards without the optional USB debug port will come from the factory with the jumpers set like Figure 4.13. The USB Host port will be enabled and power is expected to come from J1. When the USB debug port is populated the jumpers will be set like Figure 4.14. The USB Host port will be enabled, power is expected to come from J1, and COM1 will be available through J3.

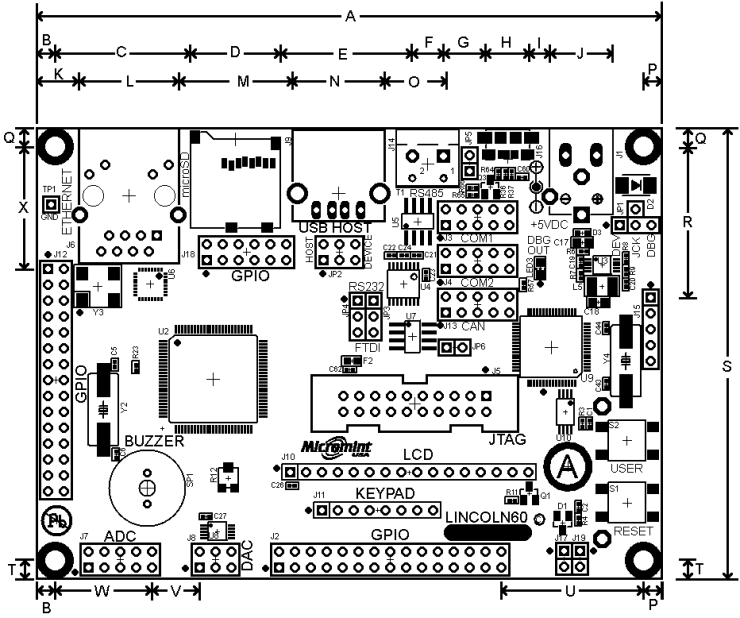

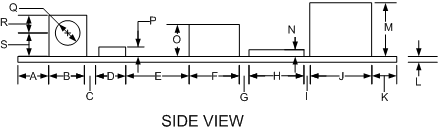

NEXT: Mechanical and Electrical Characteristics
| Characteristic | Minimum | Maximum | Unit |
| Voltage on J1 without LCD | 3.9 | 5.8 | VDC |
| Voltage on J1 with LCD | 4.8 | 5.8 | VDC |
| Voltage on VBAT (B1 or J12) | 2.1 | 3.6 | VDC |
| Voltage on ADC | 0.0 | 3.3 | VDC |
| Voltage on Digital Input | 0.0 | 5.0 | VDC |
| Operating Temperature | 0 | 70 | ºC |
| Storage Temperature | -50 | 125 | ºC |
The Lincoln 60 SBC is currently available for commercial temperature ranges. Contact the Micromint sales department if you require support for industrial temperature ranges.

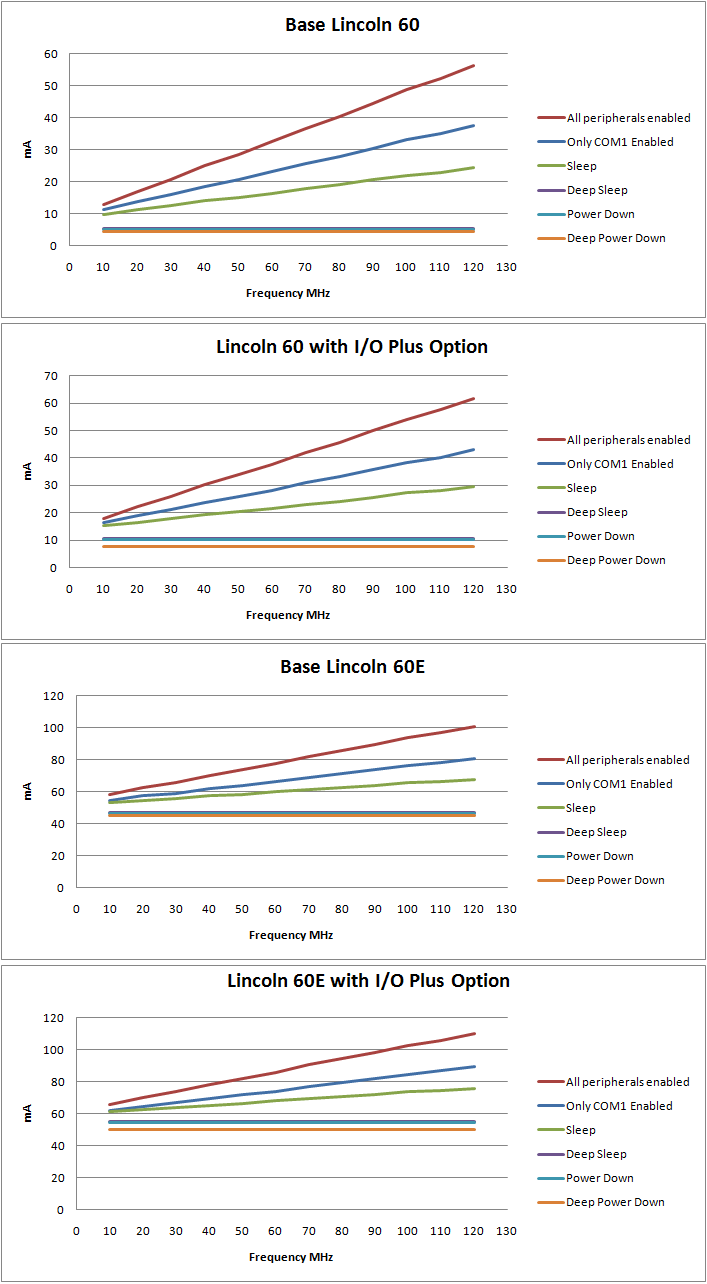

Test Conditions: Vin (J1) = 5.63V, VCC = 3.3V
Below is the physical dimensions for the Lincoln 60. The mounting holes will accept a #4 size screw.
| DIM | Inches | Millimeters | DIM | Inches | Millimeters | DIM | Inches | Millimeters | DIM | Inches | Millimeters |
| A | 3.94 | 100.0 | G | 0.266 | 6.75 | M | 0.71 | 18.03 | S | 2.835 | 72.0 |
| B | 0.116 | 2.95 | H | 0.275 | 6.98 | N | 0.58 | 14.73 | T | 0.115 | 2.92 |
| C | 0.851 | 21.61 | I | 0.124 | 3.14 | O | 0.369 | 9.37 | U | 0.895 | 22.73 |
| D | 0.567 | 14.4 | J | 0.4 | 10.16 | P | 0.117 | 2.97 | V | 0.3 | 7.62 |
| E | 0.828 | 21.03 | K | 0.265 | 6.74 | Q | 0.12 | 3.04 | W | 0.608 | 15.44 |
| F | 0.2 | 5.08 | L | 0.63 | 16.0 | R | 0.950 | 24.13 | X | 0.76 | 19.3 |
| DIM | Inches | Millimeters | DIM | Inches | Millimeters | DIM | Inches | Millimeters | DIM | Inches | Millimeters |
| A | 0.33234 | 8.4415 | F | 0.588 | 14.935 | K | 0.261 | 6.63 | P | 0.136 | 3.45 |
| B | 0.3543 | 9.0 | G | 0.072 | 1.8171 | L | 0.06 | 1.524 | Q | 0.269 | 6.83 |
| C | 0.117 | 2.97 | H | 0.56693 | 14.40 | M | 0.545 | 13.843 | R | 0.177 | 4.5 |
| D | 0.345 | 8.763 | I | 0.072 | 1.83 | N | 0.1 | 2.54 | S | 0.256 | 6.5 |
| E | 0.599 | 15.21 | J | 0.63 | 16.0 | O | 0.288 | 7.313 |
PREVIOUS: User Interfaces, Connectors, and Jumpers
This section outlines material that may be useful for further reading.
LPC1769 Microcontroller Data Sheet
http://www.nxp.com/documents/data_sheet/LPC1769_68_67_66_65_64.pdf
This data sheet provides reference information for the NXP1769 microcontroller, describing the functional blocks of the system-on-chip (SoC)device designed around the ARM® Cortex?-M3 core. All MCU registers are described in the data sheet.
IEEE 1149.1 JTAG Standard
http://www.jtag.com/en/Learn/Standards/IEEE_1149.1
This website provides reference information for the IEEE 1149.1 JTAG standard. It describes the standard and has a couple of tutorials demonstrating the standard.
|
|
The Definitive Guide to ARM® Cortex-M3 and Cortex-M4 Processors, Third Edition by Joseph Yiu ISBN: 0124080820 Publisher: Newnes (November, 2013) Overview of the processor and instruction set architecture of the ARM® Cortex®-M3 and Cortex®-M4 processors. Several code examples using IAR, Keil, gcc and CooCox CoIDE. |
|
|
The Designer's Guide to the Cortex-M Processor Family: A Tutorial Approach by Trevor Martin ISBN: 0080982964 Publisher: Newnes (May, 2009) Tutorial-based book giving the key concepts required to develop programs in C with a Cortex M- based processor. |
|
|
ARM System Developer's Guide: Designing and Optimizing System Software ISBN: 1558608745 Publisher: Morgan Kaufmann; (March, 2004) In-depth overview of the ARM architecture with examples that outline impact of programming practices on performance, power and cost. |
Micromint Web Site
Product information and software updates for the Lincoln SBCs.
NXP?s Web Site
Manuals, Erratas, and application notes for the LPC1769.
NEXT: Appendix A - Updating CMSIS-DAP Firmware
PREVIOUS: Mechanical and Electrical Characteristics
drive should appear.
